Description

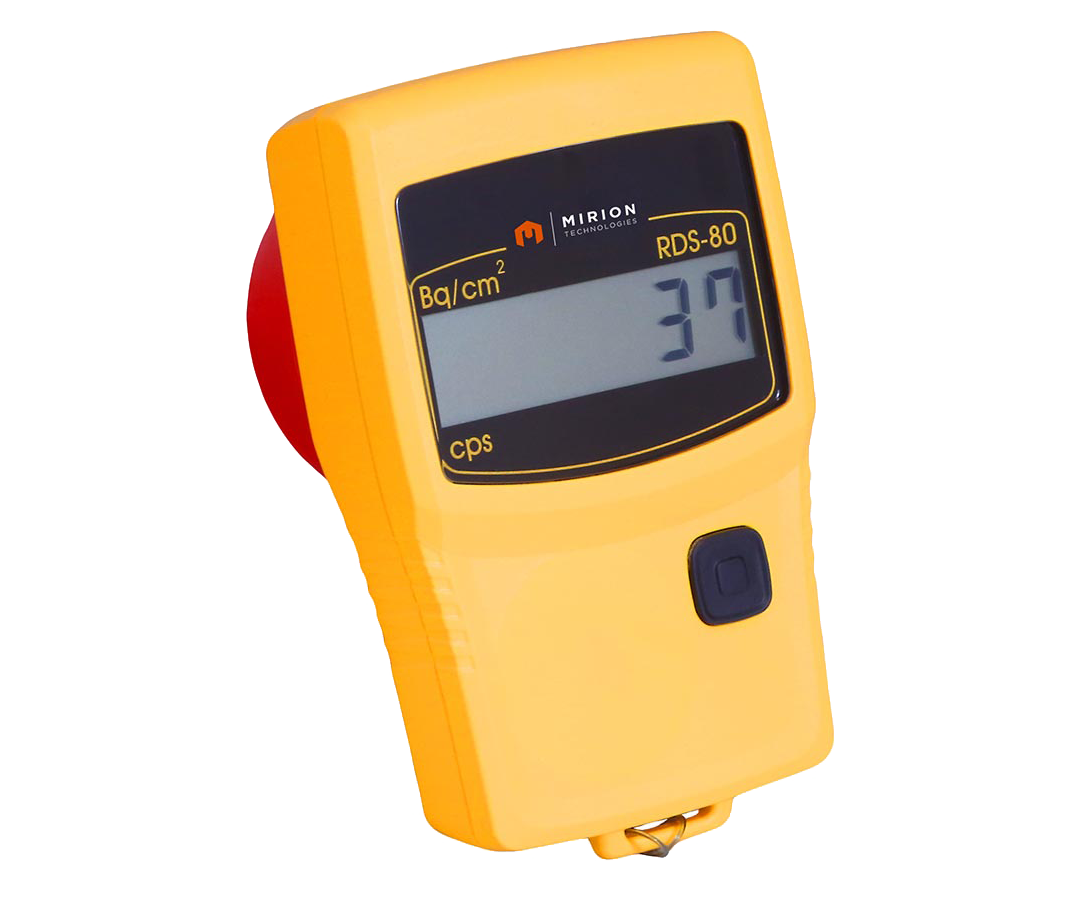

The RDS-80 Surface Contamination Meter is a versatile contamination detector which has been designed for a wide range of applications in different fields of radiation protection in nuclear industry, rescue and other operations, involving a possibility for abnormal contamination levels.

The Digital, Hand Held Pulse Rate Meter is suitable for personnel who need to locate and detect contaminated surfaces/objects during their work.

The functions comprise contamination measurements with alarm functions and automatic conversion to surface activity value and additionally surface contamination measurement with a possibility to store the histogram events into the meter’s internal memory.

The use of configuration software (RDS-CSW ) is required for downloading the data into a PC via IrDA port.

Features

• Wide measurement range: up to 100 000 cps or 1 000 000 Bq/cm²
• Standard surface contamination measurements in cps or Bq/cm²
• Contamination measurements with histogram function
• Visual and audible alarms
• Easy-to-use design

Specifications

RADIOLOGICAL CHARACTERISTICS

• Radiation detected: alpha >2 MeV, betaEmax >100 keV, gamma and x-rays from 5 keV to 3 MeV
• Detector: end window GM tube, 1,5-2 mg/cm2
• MICA window active surface area 15,2 cm2
• Measurement range: surface contamination 1 to 100 000 cps or 0.01 to 1 000 000 Bq/cm2
• Alarm levels: freely adjustable alarm levels for contamination level
• Cps linearity: ±15% ±1 digit over the range. The Bq/cm2 display is calculated from cps values using isotope dependent coefficients



FUNCTIONAL CHARACTERISTICS

• Display in either cps or Bq/cm2
• Surface activity (Bq/cm2) display configurable for different isotopes
• Cps rate follow-up by audible signal with frequency proportional to activity
• Visual and audible alarm: user settable for surface activity
• Histogram capability of up to 480 points with user settable logging interval
• Backlit display with six large digits • Built-in self-diagnostics function
• Gamma background reduction for Bq/cm2 measurements
• Built-in infra-red port (IrDA)



MECHANICAL CHARACTERISTICS

• Case: rugged plastic case
• GM tube Ø 4.4 cm (1.74”)
• Dimensions: 78 x 126 x 57 mm
• Weight:
  • 280 g without batteries
  • 330 g with batteries



ELECTRICAL CHARACTERISTICS

• Power supply: 2 alkaline batteries IEC LR6/AA size (recommended)
• Battery life time: at least 2000 hours at normal background with alkaline cells
• (More than 1 year under normal operation)
• Battery alarm: two-step alarm for low battery voltage
• Electromagnetic compatibility: CE compliant



ENVIRIONMENTAL CHARACTERSTICS

• Temperature range:
  • 25…+55°C operational (-13… 131°F)
  • 40…+70°C storage (-40… 158°F)



ACCESSORIES

• RDS-CSW software for parameter setting and histogram readings (can be downloaded free of charge at www. mirion.com)
• RDS-CSW Configuration SW full version with calibration key ( item no. 1233-246)
• Wrist strap
• Neck strap
