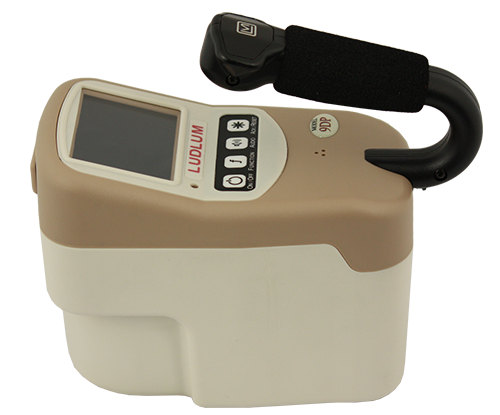

Model 9DP

Ion Chamber Survey Meter

Part Number: 48-3742

Features

• 0 to 50 mSv/h (0 to 5 R/hr) Range with μR/hr Sensitivity
• Sunlight Readable Color Display
• Auto Zeroing & Ranging
• Rechargeable Batteries
• Alarms
• Rate, Integrate & Peak Hold Readouts
• Data Logging
• USB Connectivity
• Free Firmware Updates through Internet

* NOTE: This instrument is considered HAZMAT and requires HAZMAT training to ship. Please see the instrument manual for details.

---

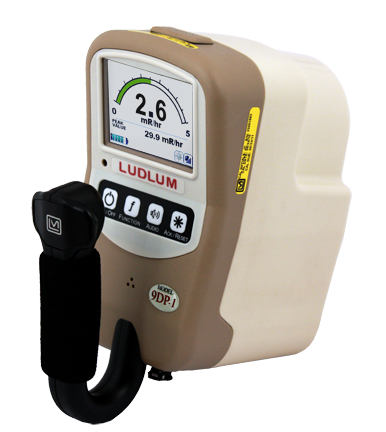

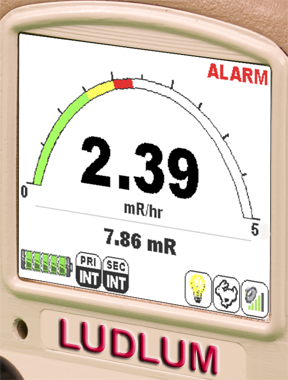

The Ludlum Model 9DP pressurized ion chamber meter provides highly sensitive measurements of exposure and exposure rate. It can simultaneously display the exposure rate and integrated value, or the highest rate seen by the instrument. The integrated value can be reset (if desired) using one of the four convenient front-panel buttons. The stunning 256-color, bit-mapped display provides an optimized presentation of the data and is accompanied with icons informing the user of the active functions and instrument status. All logged data are written in csv format to a plugged-in, industry standard, USB thumb drive for convenient retrieval by a PC spreadsheet or database program. Alarms are manifested using color changes on the display and an audio output.

The Model 9DP is part of Ludlum’s Dimension series of meters employing state-of-the-art technologies that deliver tremendous capability, user friendliness, and convenient PC connectivity. The built-in USB port facilitates password-protected access to parameter settings via direct connection to a standard USB keyboard (with no additional USB ports, and no integrated mouse or trackpad) thus foregoing any need to install PC application software or dealing with operating system compatibility issues. Ludlum also offers an optional Dimension PC Windows^® interface program that enables total control over the instrument and performs calibration.

Firmware and software updates are occasionally available as downloads for this instrument. Check the Software & Firmware Downloads page under the Support menu for updates and instructions.

Specifications:

Radiation Detected	Gamma & X-rays above 25 keV Beta above 1 MeV
Detection Range	R/hr units: 0 – 500 μR/hr, 0 – 5 mR/hr, 0 – 50 mR/hr, 0 – 500 mR /hr, 0 – 5 R/hr Sv/h units: 0 – 5 μSv/h, 0 – 50 μSv/h, 0 – 500 μSv/h, 0 – 5 mSv/h, 0 – 50 mSv/h
Chamber Volume	230 cm3 (14 in3) volume pressurized to 9 atm (122 psig)
Energy Response	± 25% from 60 keV to 1.25 MeV
Accuracy	± 10%
LCD Display	8.9 cm (3.5 in.) diagonal; 240 x 320 (H x W) pixels; TFT active matrix; 262,000 colors; 220 cd/m2
Measurement Readouts	Simultaneous display of rate, integrated reading, and highest rate (peak hold)
User Controls	4 pushbuttons: Instrument on / off Peak rate / Integrate mode Audio on / off Alarm acknowledge / Meter reset / Clearing integrated dose or peak rate
Automatic Functions	Auto ranging, Auto zeroing, Auto LCD backlighting
Response Time	5 s in lowest range, 2 s in all other ranges, when measuring from 10% to 90% of final value
Alarms	Two levels of radiation alarms available, each are user programmable throughout entire readout range and set through a PC interface program. Other alarms include low battery and various detector failures.
Audio Outputs	Built-in unimorph speaker, > 60 dB at 0.6 meters (2 ft.) An optional audio jack can be installed for connecting to an external headset. See Options tab for more information.
Temperature Range	-20 to 40 °C (-4 to 104 °F)
Power	Eight rechargeable “AA” NiMH batteries, supplied with wall charger for direct connection to instrument
Battery Life	12 to 30 hours between charges, depending upon use of backlighting
USB Interface	Single USB port, may be used to: Connect a USB keyboard (with no additional USB ports, and no integrated mouse or trackpad) to facilitate password-protected parameter changes Connect a USB thumbdrive for storing logged data Connect to a PC with the optional interface kit for parameter editing and calibration
Data Logging	Data is stored to detachable USB thumb drive in CSV format for easy retrieval by PC spreadsheet/database programs. Data points include real-time clock generated date and time with rate, integrated reading, and instrument status. Logging time intervals are set by PC interface program or standard USB keyboard (see Options tab).
Construction	Durable molded plastic with internal metal support
Size (H x W x L)	21.9 x 11.6 x 24.5 cm (8.6 x 4.6 x 9.6 in.)
Weight	1.5 kg (3.3 lb), including batteries

Options:

Option	Description	Part Number
Dimension Interface Kit	Enables calibration and setup of Dimension instruments. Includes Dimension Configuration Manager software and USB cable.	4293-763
Model 9DP Logging Spreadsheet Software	Allows user to log real-time data from the instrument directly to an Excel spreadsheet.	Software + USB Cable: 4293-998 Software Only: 1370-101
Mini-USB Keyboard	Connects to instrument and can be used to configure the instrument for data logging.	2312289
Model 9DP-Series Alkaline Battery Pack	Battery pack of 8 non-rechargeable “AA” batteries, permitting quick battery change in the field.	4543-028
Headphone Jack	Adds headphone jack to instrument.	4293-891
Stereo/Mono Headphones	Adjustable stereo/mono headphones.	22-9313
Transport & Storage Case – Medium	Rugged, dust- and waterproof transport and storage case.	2311063
Shoulder Strap	1.8 m (6 ft) adjustable nylon shoulder strap. Requires instrument case modification.	4498-868
