Description
These sources are used for calibrating well type NaI detectors. They are constructed of high- strength plastic to withstand the rigors of constant use in a busy department. They have a flat base which allows easy positioning in the vertical position required for consistent accuracy (in the counting of) many tests.

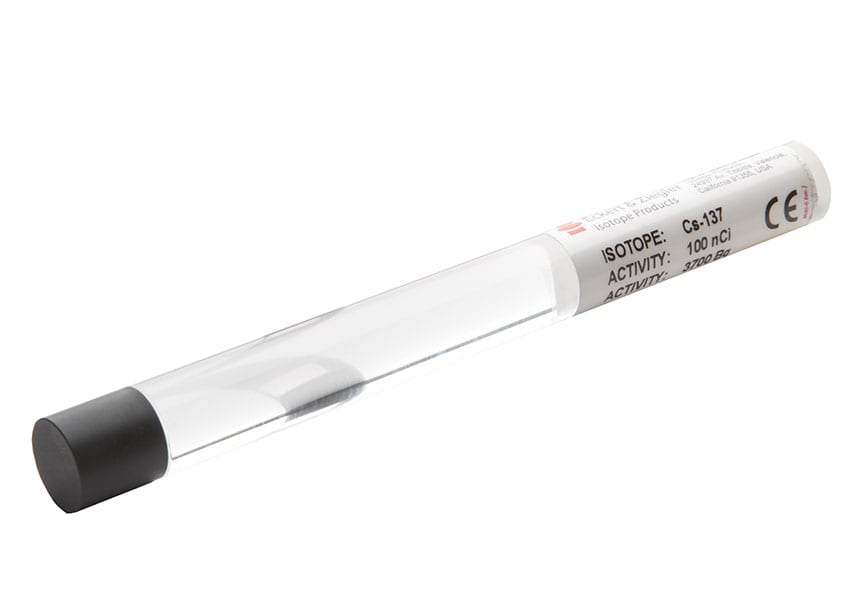

Rod Sources are calibrated as NIST traceable with an accuracy of ± 5% at the 99% confidence level. Each source consists of a lucite rod measuring 12.7 mm (0.5″) x 75 mm (2.95″) as a standard size. The active diameter of the rod source is 0.187″ (4.75 mm).
Item Numbers
ROD SOURCES 12.7mm (0.5″) X 127mm (5″) NOMINAL CALIBRATION +/-15%
0975-152R | Eu-152- (0.5 µCi Rod) |
0975-137R | Cs-137- (0.5 µCi Rod) |
ROD SOURCES 12.7mm (0.5″) X 127mm (5″) NIST TRACEABLE +/-5%
0975-138S | Ba-133 3700 Bq- (0.1 µCi) Rod |
0975-138T | Ba-133 0.370 MBq- (10 µCi) Rod |
0975-146S | Cd-109 0.037 MBq- (1 µCi) Rod |
0975-146T | Cd-109 0.370 MBq- (7-10 µCi) Rod |
0975-139S | Cs-137 3700 Bq- (0.1 µCi) Rod |
0975-139R | Cs-137 0.037 MBq- (1 µCi) Rod |
0975-139T | Cs-137 0.370 MBq- (10 µCi) Rod |
0975-137S | Co-57 3700 Bq- (0.1 µCi) Rod |
0975-0025 | Co-57 37 kBq- (1.0 µCi) Rod |
0975-137T | Co-57 0.370 MBq- (10 µCi) Rod |
0975-142S | Co-60 3700 Bq- (0.1 µCi) Rod |
0975-142R | Co-60 0.037 MBq- (1 µCi) Rod |
0975-142T | Co-60 0.370 MBq- (7-10 µCi) Rod |
0975-135S | I-129 3700 Bq- (0.1 µCi) Rod |
0975-140S | Mn-54 3700 Bq- (0.1 µCi) Rod |
0975-140T | Mn-54 0.370 MBq- (10 µCi) Rod |
0975-0026 | Mn-54 37 kBq – (1.0 µCi) Rod |
0975-141S | Na-22 3700 Bq- (0.1 µCi) Rod |
0975-141T | Na-22 0.320 MBq- (7-10 µCi) Rod |
0975-0027 | Na-22 37 kBq- (1.0 µCi) Rod |
0975-100S | Rod Set: Co-57, Na-22, Cs-137, Mn-54 Co-60, Ba-133 (0.1 µCi), Cd-109 (1 µCi) Rods |
0975-100T | Rod Set: Co-57, Na-22, Cs-137, Mn-54 Co-60, Ba-133 (.1 µCi), Cd-109 (7-10 µCi) Rods |
